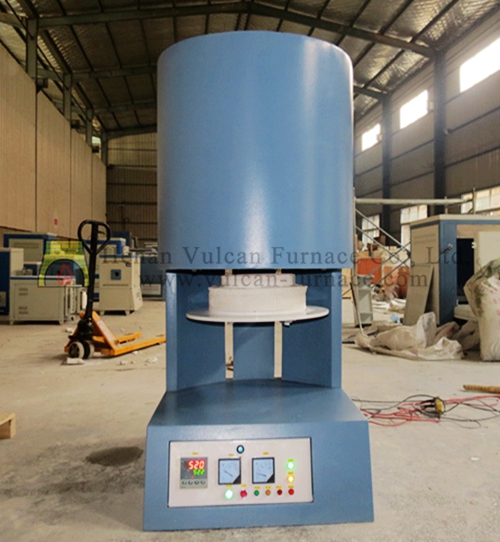

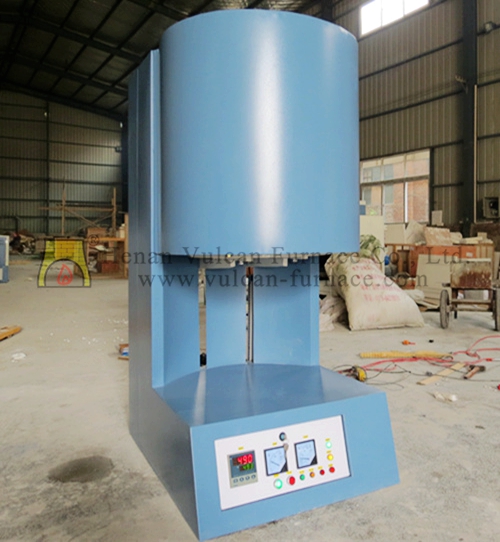

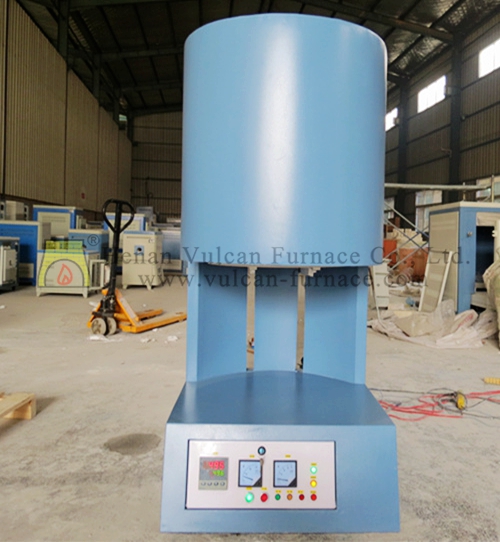

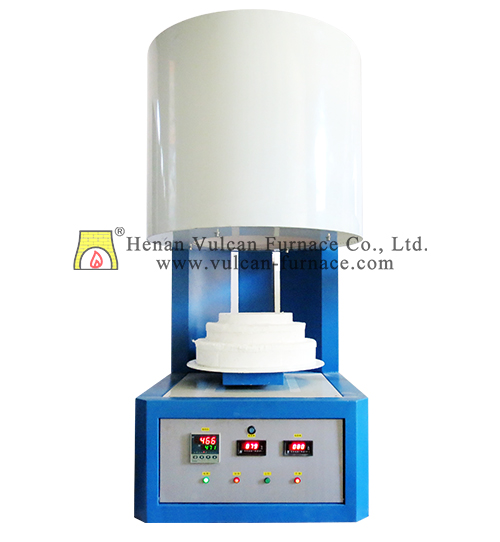

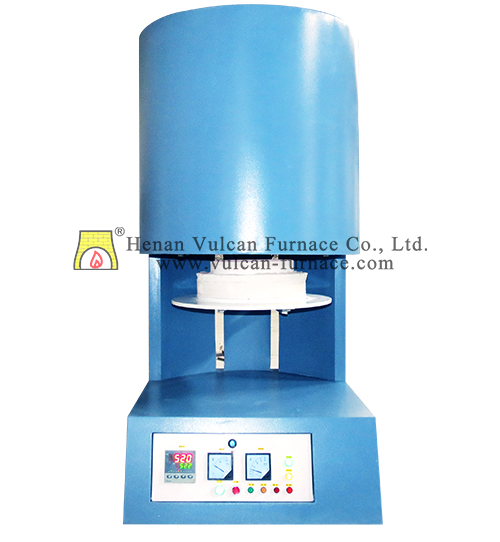

VF-14J Screw Well Type Electric Crucible Furnace
Model: VF-14J
- Size：300*300
- Operation：PID control touch screen or button
- Desgin temperature：800-1800 ℃
- Temp Accuracy (℃)：+/- 1
- Thermocouple：B type
Product Description
With Accessories
About Vulcan Furnace
Product Description
Application
Equipment widely used in universities, research institutes, industrial and mining enterprises such as powder, military, electronics, metallurgy, medicine, ceramics, glass, machinery, new material development, special materials, refractory materials, building materials, chemicals, metal sintering and metal heat treatment Experiment and production.
Technical Characteristics
This equipment has introduced advanced technology, independent research and development of energy-saving, environmentally friendly new electric furnace, the device has a scientific and rational design technology, elegant appearance, advanced and reasonable structure, easy operation, high-quality cold-rolled steel shell, the precision CNC machining, Luxury, beautiful two-color imported epoxy powder electrostatic spray process from processing, high temperature, corrosion-resistant, long-term from fade.
The furnace has a uniform temperature field, the surface temperature of the double-layer heat-resistant furnace body is close to room temperature, and the heating and cooling functions are adjustable. The furnace adopts imported high-temperature composite fiber materials and is constructed by a numerical control process. Chilling heat, corrosion resistance, non-collapse, no crystallization, no residue, no pollution, long service life.
The control system uses microcomputer intelligent adjustment technology, with PID adjustment, automatic control, self-tuning function, 50 sections of programming, and the preparation of a variety of heating, thermostat, cooling program, temperature control accuracy.
Protection device using independent protection: (over-temperature, over-voltage, super-current, broken even, power, leakage, short circuit, etc.).
In addition, through our independent research and development of control software, electric furnace and computer associated single or multiple furnace can be achieved remote control, start the electric furnace, stop the electric furnace, set the temperature program, temperature program storage, view the history curve, print Historical curve and so on.
Honors: ISO9001: 2008, CE ，AAA certificate
TTT
Furnature Descriptions
| Product | Screw well type electric crucible furnace VF-14J |
| Heating rate | 0-30℃/min (Suggestion: 0-10℃/min) |
| Temp. control | 16/30/50/100steps programmable and PID automatic control |
| Temp. accuracy | +/-1℃ |
| Chamber material | aluminium oxide fiber (Al2O3 fiber) |
| Heating element | Resistance wire、SiC rod,MoSi2 rod heating element |
| Working voltage | 380V three phases 50/60Hz |
| (or according to your requirement.) | |
| OEM is accepted for chamber size,temperature,voltage | |
Furnace Size
| Chamber size mm | Voltage V | Power kw | Temp precision |
| φ300*300 | 380 | 12 | ±1 ℃ |
| φ500*500 | 380 | 25 | ±1 ℃ |
| φ700*500 | 380 | 30 | ±1 ℃ |
| φ800*500 | 380 | 40 | ±1 ℃ |
| φ1200*800 | 380 | 80 | ±2 ℃ |
| Temp：800°C,1200°C,1400°C,1600°C,1700°C,1800°C, 2200°C | |||
OEM size,temperature,vacuum system,atmosphere system can be accepted
Let’s make something great together. Feel free to contact us by telephone or email and we will be sure to get back to you as soon as possible.☺
With Accessories
With Accessories
Sic or MoSi2 |
2 sets |   |
Gloves |
1 pair |  |
Clamp |
1 pc |  |
Instruction manual |
1 book |  |
